Injection molding robots have become essential to efficient, high-volume production in modern manufacturing environments. These innovative machines are designed to automate repetitive tasks, improve precision, and reduce labor costs. However, a key factor that affects their performance is the payload limit—the weight that the robot can safely carry and operate with.
Understanding how to manage payload limits effectively is critical to extending robot life, reducing failures, and ensuring safe and accurate operation. In this article, we will explore how to identify, measure, and optimize the payload performance of injection molding robots, combined with practical strategies for real-world applications.
Injection molding robots payload capabilities
Before discussing payload limits, it is essential to understand what “payload” means in the context of injection molding robots. Payload refers to the total weight that the robot arm can carry, including the gripper, EOAT, and the molded part itself. This maximum weight directly affects speed, range of motion, and cycle time.

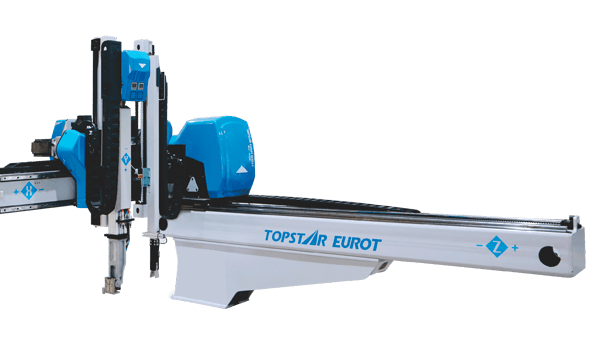

The manufacturer usually lists each robot model’s payload specification. Exceeding this limit will not only slow down the machine, but can also cause wear, motor strain, and potential mechanical failure. To avoid overloading, manufacturers should calculate the total weight of all attached tools and materials, then select a robot with a safety margin—usually 20-30% higher than the estimated load. Topstar clearly defines the load ratings of its injection molding robots to help companies choose the right robot for the task.
Identify the signs of overloading an injection molding robots
When an injection molding robot is operated beyond its expected payload capacity, the consequences are not always immediately visible. However, repeated overloading can cause severe operational problems over time. Knowing the signs of overloading can help operators take action before damage occurs.
Typical symptoms include slower than usual movement, inconsistent positioning, vibrations during operation, and even error messages from the robot controller. In some cases, overloading can cause parts to fall, result in misaligned movement, or lead to increased wear on joints and gearboxes. To detect these signs early, regular monitoring through software diagnostics and operator observation is essential. Topstar robots often have built-in sensors and intelligent control systems that sound alarms when payloads approach unsafe thresholds.
How to handle payload variations？
In actual production, it is rare to use precisely the same parts every time. Depending on product design, mold configuration, or packaging requirements, an injection molding robot may need to handle different weights. Managing these fluctuations without overloading the system is key to payload optimization. Top robots adjust automatically through flexible servo motors and adaptive control systems. These features allow the robot to adjust grip force, movement speed, and arm acceleration based on the weight being carried. This means that lighter parts can be handled faster, while heavier parts can be handled more carefully to maintain stability.
It is also essential to classify tasks according to payload needs. Lifting a gate is different from removing a molded part. Assigning different types of robots or motion profiles to different tasks ensures consistency in performance and avoids the risk of uneven wear.
Choose the proper end-of-arm tooling for payload efficiency
The EOAT plays a critical role in how an injection molding robot handles its payload. An overweight or poorly designed EOAT can take up a large portion of the robot’s payload, leaving insufficient space for the actual molded part.
To stay within safe payload limits, manufacturers should choose lightweight, modular EOATs that provide the required functionality without adding excessive weight. Engineers often construct EOATs using materials such as carbon fiber, aluminum, or reinforced polymers to strike a balance between strength and weight. Topstar engineers also recommend customizing the EOAT for specific molds and products. Customized EOATs provide a tighter fit, a more secure grip, and evenly distribute weight, which reduces torque stress on the robot wrist.
Safely manage payloads through programming
Software plays a significant role in how an injection molding robot responds to payloads. Properly written motion programs can prevent overloads by controlling speed, trajectory, and torque—especially when performing pick-and-place tasks or navigating tight mold spaces.
Advanced motion profiles allow for “soft” starts and stops when handling heavier loads, reducing sudden shocks that can stress the arm. Similarly, programmers can instruct the robot to slow down or take a shorter path when payloads approach the maximum. Topstar equips its robots with intelligent control systems that continuously learn and adapt. With load-based motion profiles and built-in limit monitoring, our robots reduce operator error and ensure safer, smoother operation.
Achieving Long-term Robot Efficiency
Effectively managing payload limits is one of the smartest things a manufacturer can do to extend the life of an injection molding robot and improve performance and safety. From selecting the right robot model and tooling to adjusting programming and following a regular maintenance routine, every decision contributes to a more reliable, efficient operation.
